PTT Dispatch Console

From proof of concept to product

The proof of concept did the one thing that proves the idea: log in, join a group, make a call. That is the easy eighty percent. The twenty percent left over is the entire reason the product exists. What the operator sees the instant they press to talk, and whether the floor was actually granted. How the console behaves when the connection dies and comes back. What happens when someone unplugs the headset mid-call. What an operator needs the moment an SOS comes in. None of that shows up in a demo, and all of it decides whether a dispatcher trusts the tool.

So I rebuilt it from scratch and grew it function by function into a commercial product: presence and a live list of users and groups, group, one-to-one and dispatcher broadcast calling, a live map of field users with geofencing and movement replay, text and media messaging, call alerts, SOS and emergency handling, full call recording with searchable replay, and the reconnection logic that makes it dependable for a full shift. The interesting work was never the feature list. It was making each feature hold up on a real network in a real control room.

Getting real-time voice and floor control right

Push-to-talk is half-duplex: one person holds the floor, everyone else listens. That sounds simple and is the part most worth getting exactly right. The console has to show, with no ambiguity, who holds the floor right now. When the operator presses to talk, the interface updates instantly: the button depresses, the indicator switches to “You are talking”, a start tone plays, and the microphone begins capturing immediately. The client sends the speech-start request and starts recording in parallel rather than sitting silent waiting for a grant. If the server denies the floor, an error tone plays and the talk-burst stops.

I should be precise about how floor control actually works, because the honest version is the credible one. It is not a local state-machine engine. The client sends speech-start on press and speech-end on release, and reacts to the server’s denial codes (floor taken, user busy, time exceeded, and so on). Arbitration lives on the server, and on the receive side an audio-source manager locks onto one talker per burst and discards competitors, so the operator never hears two people at once.

The voice path is the other hard half. Field users are on cellular, so the path has to survive loss and reconnects. Qt Multimedia handles capture and playback at 8 kHz mono; on top of it sit two selectable codecs, AMR-NB narrowband by default and Opus as an alternative, with software gain control and live input and output level meters. I want to be straight about what the app does and does not do here: there is no jitter buffer, no acoustic echo cancellation and no noise suppression layered on by the application. Incoming packets are decoded on arrival and drained to the system audio sink through a short prebuffer. Resilience comes from the codecs, the prebuffer and self-recovering audio devices that reopen when a sink goes idle or a headset is unplugged. The core voice and protocol work runs off the GUI thread on a Boost.Asio worker, because the one thing a dispatch console cannot do is stutter while someone is trying to talk.

More than voice: map, geofences and emergencies

A dispatcher needs the whole picture, not just audio. The console embeds a real interactive map (Leaflet running inside a Qt WebEngine view, bridged to C++ over QWebChannel) where every field radio appears as a status-coloured marker that moves as new GPS fixes arrive. Operators can switch between OpenStreetMap, satellite imagery and Google tiles, replay any user’s past movements as an animated track with play, pause and speed controls, and draw circular or polygonal geofences per talk group. Geofence crossings are logged to a local database, surfaced as Windows toast notifications, and exportable to CSV.

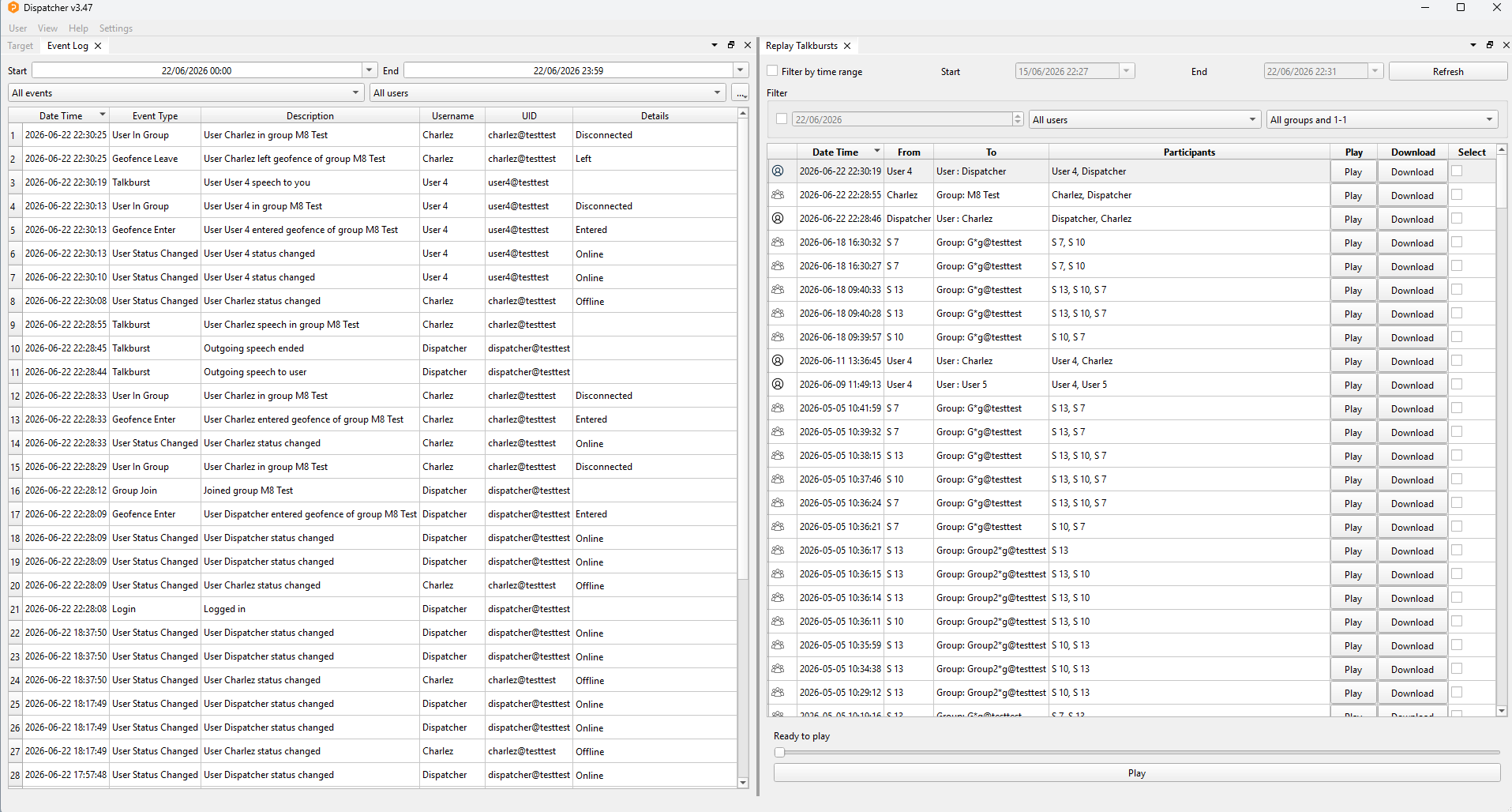

When something goes wrong, the emergency path takes over: incoming SOS, man-down and group-emergency alerts raise an always-on-top window that sounds an alarm, shows who is in distress and drops their position on an embedded map at their exact coordinates, with acknowledge and mute controls. Alongside that there is one-to-one and group messaging with image, video and audio attachments, call alerts that can carry a recorded voice note, and a central event log that records logins, talk-bursts, messages, presence changes, geofence crossings and emergencies for audit and replay.

Built around a custom protocol, shipped as a product

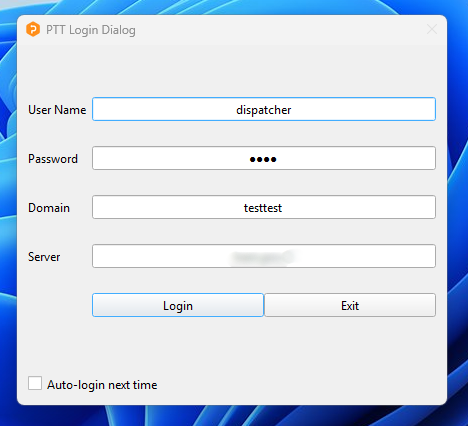

The console talks to the PTT backend over a custom in-house protocol rather than a standard stack. I kept that wire behind a single protocol layer: a compact binary, length-prefixed TLV format (POC-Lite) that carries both signaling and voice over one TCP connection, optionally wrapped in TLS 1.2+ with the server certificate pinned to a known fingerprint, authenticated with a hashed login and a token-based re-auth for the stream. A heartbeat watches the link and the client reconnects on its own after a drop. The rest of the application never touches raw bytes; it reacts to signals instead: a user came online, the floor was granted, a talk-burst was recorded.

That boundary is what let me keep adding features quickly. And because it is a real product, it ships as a white-label build: the same codebase compiles into multiple branded dispatchers, each with its own name, icon and update server, kept current by a built-in auto-updater that checks for a new version on launch, downloads it and hands off to a helper to install. The interesting work, start to finish, was turning a demo that makes a call into something an operator can lean on for a full shift.
